| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2) | |
| Chipset | INTEL Z890 | |
| Form Factor | ATX (243.84mmx304.8mm) | |
| Audio | Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
|
| Expansion Slots | ||
| PCI | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) * PCI_E2 slot will run at x8 speed and PCI_E3 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_4 slot. ** PCI_E4 will be unavailable when installing M.2 SSD in the M2_3 slot. |
|
| M.2 Socket | 6x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices * M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment. ** SATA3 will be unavailable when installing M.2 SATA SSD in the M2_5 slot. *** Please refer to the manual for M.2 SSD heatsink restrictions. |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 2x DDR5 UDIMM, Maximum Memory | |
| Supported Memory | Support 9600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Connector & Ports | ||
| USB (s) | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 8x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) * To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit. |
|
| LAN Port (s) | 1x Intel® Killer E5000B 5G LAN | |
| Wireless Communication module | Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
|
| Supported Storage | 6x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices 6x SATA 6G * M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment. ** SATA3 will be unavailable when installing M.2 SATA SSD in the M2_5 slot. *** Please refer to the manual for M.2 SSD heatsink restrictions. |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
| Audio | 1x Front Audio (JAUD) | |
| Internal I/O Ports | 1x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) V-check point 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | LED FEATURE 4x EZ Debug LED 1x EZ Digit Debug LED |
|
| Warranty Details | ||
| Warranty Details | 3 year warranty | |

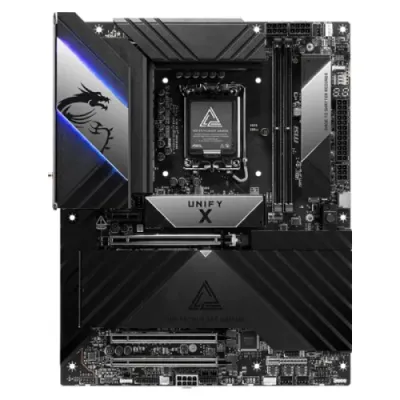

Unlock unparalleled performance with the MSI MEG Z890 UNIFY-X LGA 1851 ATX Motherboard, designed for Intel Core Ultra Processors (Series 2). Equipped with the cutting-edge Intel Z890 chipset, this motherboard supports DDR5 memory speeds of up to 9600 MT/s for superior memory performance, making it an ideal choice for enthusiasts, gamers, and professionals seeking the ultimate computing experience.
The MSI MEG Z890 UNIFY-X boasts 6x M.2 slots, including PCIe 5.0 support for ultra-fast storage devices. Whether you're installing high-speed SSDs or PCIe Gen 5 M.2 devices, this motherboard offers incredible flexibility. The PCI-E slots include Gen 5.0 x16 and x8 configurations for next-gen GPU setups, with ample space for additional expansion.
The Realtek ALC4080 Codec ensures 7.1-channel USB High-Performance Audio, supporting 32-Bit/384 kHz playback for crystal-clear sound quality. Multiple Thunderbolt 4 ports, featuring DisplayPort 2.1, support ultra-high resolutions up to 8K 60Hz for immersive visual experiences.
Stay connected with Intel Killer E5000B 5G LAN and Wi-Fi 7 (Intel Killer BE1750x), which provide blazing-fast internet speeds and smooth online gaming. The Bluetooth® 5.4 support allows seamless connection with peripherals and devices.
With RAID 0/1/5/10 support, you can configure your storage setup for speed, redundancy, or both. The EZ Debug LED and EZ Digit Debug LED ensure quick troubleshooting and system diagnostics.
Enjoy peace of mind with 3-year warranty and enhanced durability for your build. The MSI MEG Z890 UNIFY-X motherboard is the perfect foundation for your high-performance PC setup.
