Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳20,351
| Basic Information | ||
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
|
| Chipset | INTEL B760 | |
| Form Factor | mATX 243.84mmx243.84mm |
|
| BIOS | ||
| Audio | Realtek ALC897 Codec 7.1-Channel High-Definition Audio |
|
| Others | ||
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR5 |
|
| Slots | 4 | |
| Supported Memory | Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
|
| Maximum Memory | 192GB | |
| Others | ||
| Graphics | ||
| Graphics | 2x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz |
|
| Others | ||
| Connector & Ports | ||
| HDMI | 2x HDMI | |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) |
|
| LAN Port (s) | Realtek RTL8125BG 2.5G LAN |
|
| Wireless Communication module | Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA |
|
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
| Audio | 3x Audio Connectors | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
|
| Others | ||
| Others | ||
| Special Features | 4x EZ Debug LED |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 years | |
| others | ||

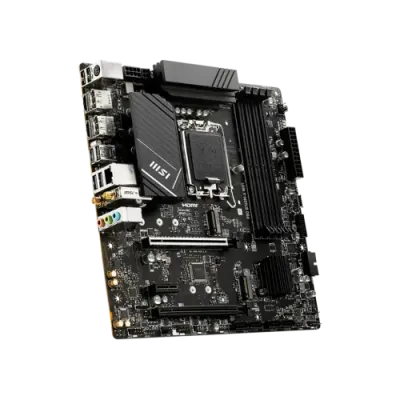

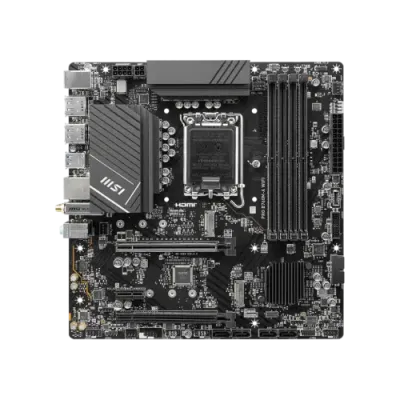

The MSI PRO B760M-A WIFI mATX Motherboard is designed for professionals and enthusiasts looking for top-tier performance, reliability, and advanced connectivity. Supporting 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors with an LGA 1700 socket, this motherboard ensures compatibility with the latest CPUs. Equipped with the Intel B760 chipset, DDR5 support up to 192GB, and dual-channel architecture, it delivers ultra-fast speeds and seamless multitasking.
This motherboard features advanced connectivity options, including Wi-Fi 6E and Bluetooth 5.3 for lightning-fast wireless communication. The dual HDMI and DisplayPort outputs support stunning 4K resolution, perfect for professional and gaming use. With multiple USB 3.2 Gen1, Gen2, and Type-C ports, the PRO B760M-A WIFI is ready for all your peripherals.
Experience high-definition audio with the Realtek ALC897 codec and 7.1-channel surround sound, providing crystal-clear sound for immersive entertainment. The EZ Debug LED and user-friendly BIOS make system setup and troubleshooting effortless.
Ideal for high-performance builds, this motherboard includes M.2 PCIe 4.0 support, RAID compatibility, and reliable cooling solutions to maintain stability during heavy workloads. With MSI’s renowned quality and a 3-year warranty, the PRO B760M-A WIFI is a solid foundation for any modern PC build.
