Pay cash discounted price and save
Pay cash discounted price and save
EMI available for 12 months on regular price: ৳10,450
| Basic Information | ||
| Supported CPU | Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package L3 cache varies with CPU |
|
| Chipset | Intel H81 Express Chipset | |
| Form Factor | Micro ATX Form Factor; 22.6cm x 17cm | |
| BIOS | 1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel |
|
| Others | ||
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR3 | |
| Slots | 2 x 1.5V DIMM sockets | |
| Supported Memory | Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 16 GB | |
| Others | ||
| Graphics | ||
| Graphics | Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz * Support for HDMI 1.4a version. |
|
| Others | Max Shared Memory 1 GB | |
| Connector & Ports | ||
| HDMI | 1 x HDMI | |

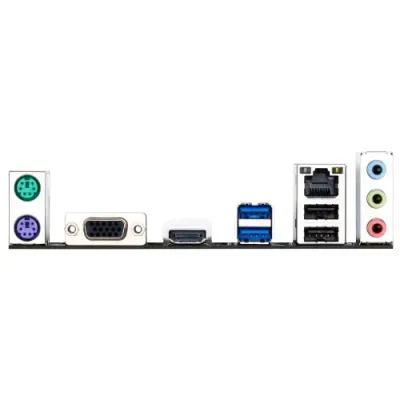

| USB (s) | Chipset: 2 x USB 3.0/2.0 ports on the back panel 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) | |
| Wireless Communication module | ||
| Supported Storage | Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) 2 x SATA 3Gb/s connectors (SATA2 2/3) |
|
| RAID | ||
| Audio | ||
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | ||
| Others | 1 x D-Sub | |
| Others | ||
| Special Features | Support for Q-Flash Support for Xpress Install Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker Smart TimeLock Smart Recovery 2 Support for ON/OFF Charge |
|
| Bundled Software | ||
| Warranty Details | ||
| Warranty Details | 3 Years | |
| others | ||
The GIGABYTE GA-H81M-H Micro ATX Motherboard is designed to provide reliable performance and essential features for users looking to build or upgrade their system with 4th Generation Intel Core processors (LGA1150). This motherboard features the Intel H81 chipset, ensuring compatibility with a wide range of processors while delivering stable and efficient operation.
With support for up to 16GB of DDR3 memory at speeds of up to 1600MHz, it allows for responsive computing and smooth multitasking. The board includes HDMI and D-Sub (VGA) display outputs, enabling seamless connectivity with modern and legacy monitors. Whether you're setting up a home office PC, a multimedia system, or an entry-level gaming rig, this motherboard provides the necessary tools for a reliable experience.
Additionally, the GA-H81M-H is equipped with a high ESD protection LAN, offering enhanced durability and stable network connectivity. Its compact Micro ATX design makes it ideal for smaller builds while still maintaining essential features for daily computing. Affordable and efficient, this motherboard is a great choice for budget-conscious users looking for solid performance.
Get specific details about this product from customers who own it.
