| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD B650 | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
|
| Others | ||
| Expansion Slots | ||
| PCI | AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot AMD B650 Chipset 2 x PCIe 4.0 x1 slots |
|
| M.2 Socket | ||
| Others | ||
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II |
|
| Maximum Memory | 192GB | |
| Others | ||
| Graphics | ||
| Graphics | 2 x DisplayPort 1 x HDMITM port |
|
| Others | ||

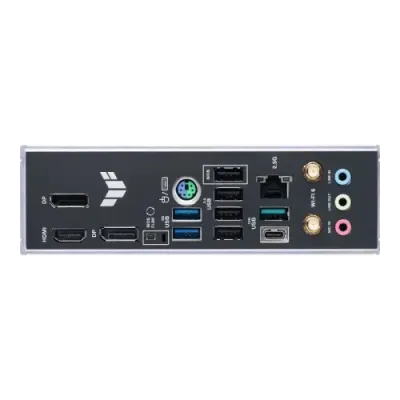

| Connector & Ports | ||
| HDMI | 1x HDMI | |
| USB (s) | Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|
| Wireless Communication module | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2 |
|
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports |
|
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
| Audio | 3 x Audio jacks | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function |
|
| TPM (Trusted Platform Module ) | ||
| Others | ||
| Others | ||
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O shield - SafeSlot Core+ - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyASUS Norton 360 for Gamers(60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Details | ||
| Warranty Details | 3 Years | |
| others | ||

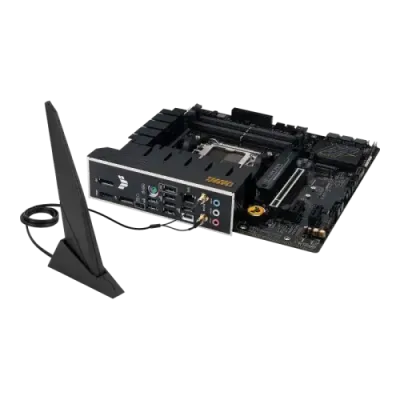

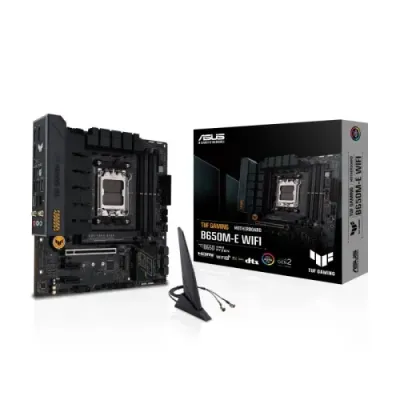

The ASUS TUF GAMING B650M-E WIFI is a micro-ATX motherboard designed for gamers and performance enthusiasts using AMD Ryzen 7000 and 8000 Series processors. Built on the AMD B650 chipset, it combines cutting-edge performance with durability, offering advanced connectivity options, DDR5 memory support, and built-in Wi-Fi 6. This motherboard is perfect for those seeking to build a compact yet powerful gaming or workstation PC.
The ASUS TUF GAMING B650M-E WIFI is engineered for high performance, supporting the latest AMD Ryzen 7000 and 8000 Series desktop processors via its AM5 socket. With DDR5 support, the motherboard can handle up to 192GB of memory, delivering blazing speeds of up to 7600 MHz (OC).
The motherboard features two M.2 slots, one supporting PCIe 5.0 x4 for ultra-fast NVMe SSDs, while the other supports PCIe 4.0 x4. Additionally, there are 4 SATA 6Gb/s ports with RAID 0, 1, and 10 support, ensuring flexible storage configurations. For expansion, it provides a PCIe 4.0 x16 slot for high-performance GPUs and two PCIe 4.0 x1 slots for additional peripherals.
The ASUS TUF GAMING B650M-E WIFI is built for long-lasting reliability, featuring TUF Protection such as DIGI+ VRM, ESD Guards, and Overvoltage Protection. Its SafeSlot Core+ design ensures durability for heavy GPUs, while the M.2 heatsinks and VRM heatsinks ensure optimal thermal performance.
For a visually stunning build, the motherboard supports Aura Sync RGB lighting, offering customization through Aura RGB and Addressable Gen 2 headers. The pre-mounted I/O shield and Q-Latch for M.2 slots simplify installation, making it a user-friendly option for DIY builders.
The TUF GAMING B650M-E WIFI is equipped with Wi-Fi 6 (802.11ax) for seamless wireless connectivity, a 2.5Gb Ethernet port for ultra-fast networking, and Bluetooth 5.2 for wireless peripherals. Onboard audio, powered by Realtek 7.1 Surround Sound, delivers an immersive gaming and media experience, enhanced by features like Audio Shielding and premium audio capacitors.
For gamers and enthusiasts, ASUS includes exclusive software like Armoury Crate, offering control over RGB lighting and fan settings, and AI Suite 3 for performance tuning and power optimization. With BIOS FlashBack™, ProCool connectors, and ASUS EZ DIY features, system updates and maintenance are simple and hassle-free.
The ASUS TUF GAMING B650M-E WIFI stands out for its robust performance, cutting-edge features, and durable build quality. It is an excellent choice for gamers, creators, and PC enthusiasts looking for a reliable motherboard with advanced connectivity options like Wi-Fi 6, PCIe 5.0, and DDR5 memory. Whether you're building a high-performance gaming rig or a productivity-focused workstation, this motherboard offers the perfect balance of performance and durability.
