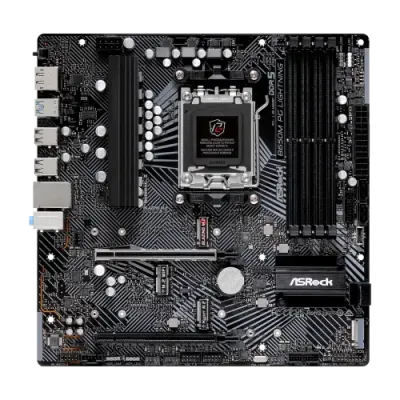

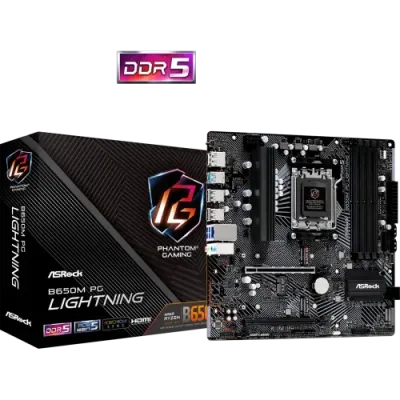

ASRock B650M PG Lightning DDR5 Micro ATX Motherboard

Product Specification

Basic Information
Supported CPU	- Supports AMD Socket AM5 Ryzem 9000, 8000 and 7000 Series Processors
Chipset	AMD B650
Form Factor	Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Others
Expansion Slots
PCI	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
M.2 Socket
Others
Memory
Type	DDR5
Slots
Supported Memory	- Dual Channel DDR5 Memory Technology - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC) - Max. capacity of system memory: 256GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Maximum Memory	256GB
Others
Graphics
Graphics	Integrated AMD RDNA graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Others
Connector & Ports
HDMI	1 x HDMI Port
USB (s)	- 1 x USB 3.2 Gen2 Type-C (Rear) - 1 x USB 3.2 Gen2 Type-A (Rear) - 1 x USB 3.2 Gen1 Type-C (Front) - 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
LAN Port (s)	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User-Friendly UI - Visual Network Usage Statistics - Optimized Default Settings for Game, Browser, and Streaming Modes - User Customized Priority Control
Wireless Communication module
Supported Storage	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors
RAID	- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Audio	HD Audio Jacks: Line in / Front Speaker / Microphone

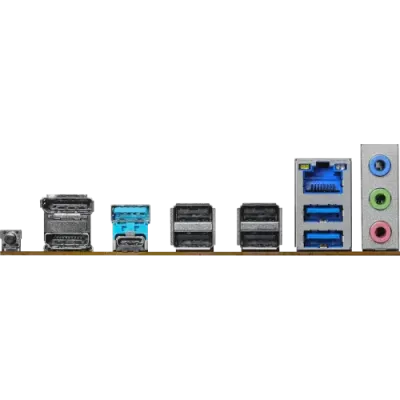

Internal I/O Ports	Rear Panel I/O - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 2 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone Connector - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin)* - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header
TPM (Trusted Platform Module )	- 1 x SPI TPM Header
Others	1 x DisplayPort 1.4
Others
Special Features	Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 6+2+1 Power Phase, 50A Dr.MOS Ultrafast Connectivity - 2.5G LAN EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer
Bundled Software	Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - ASRock Phantom Gaming LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Warranty Details
Warranty Details	3 Years
others

Description

ASRock B650M PG Lightning DDR5 Micro ATX Motherboard

Looking for a high-performance motherboard to power your next-generation AMD Ryzen build? The ASRock B650M PG Lightning DDR5 Micro ATX Motherboard is designed to deliver uncompromising speed, reliability, and advanced features for gamers, content creators, and professionals.

What Makes the ASRock B650M PG Lightning DDR5 Exceptional?

Next-Gen CPU Support: Compatible with AMD Ryzen 9000, 8000, and 7000 Series processors, ensuring future-proof performance for demanding tasks.
Blazing Fast Memory: Supports up to 256GB of dual-channel DDR5 RAM with speeds over 7200MHz (OC). Whether gaming or multitasking, experience smoother performance like never before.
Advanced Storage Options: Equipped with PCIe Gen5 M.2 slots for ultra-fast NVMe SSDs and additional PCIe Gen4 slots, giving you the edge in data transfer speeds.
Rich Connectivity: Enjoy USB 3.2 Gen2 Type-C, HDMI 2.1, DisplayPort 1.4, and 2.5G LAN for seamless device compatibility and network speeds.
Immersive Audio Experience: With Realtek ALC897 7.1 CH HD Audio and Nahimic support, elevate your gaming and entertainment with crystal-clear sound.
Rock-Solid Durability: Features 6+2+1 Power Phase with Dr.MOS technology for stable and efficient power delivery, even under heavy loads.

Who Should Buy This?

Gamers: Experience lag-free gaming with AMD CrossFire support, PCIe Gen5, and high-speed DDR5 memory.
Content Creators: Render, edit, and stream with ultra-fast storage and reliable power.
Professionals: Handle heavy workloads with a future-ready motherboard designed for durability and speed.

When You Should Avoid It

If your build focuses on older components like DDR4 memory or AMD Ryzen processors below the 7000 Series, this motherboard may not be the ideal choice.

Price and Availability

The ASRock B650M PG Lightning DDR5 Micro ATX Motherboard is available at an attractive price of BDT 19,000. Backed by a 3-year warranty, it ensures peace of mind and long-term reliability.

For more product insights and expert guidance, follow us on:
???? YouTube
???? Facebook

Upgrade your system today with the ASRock B650M PG Lightning!

Let me know if you'd like to add a specification table or meta tags for this product!
