| Basic Information | ||
| Supported CPU | Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors |
|
| Chipset | AMD A620 |
|
| Form Factor | Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm 2oz Copper PCB |
|
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
|
| Others | ||
| Expansion Slots | ||
| PCI | CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
|
| M.2 Socket | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* |
|
| Others | ||
| Memory | ||
| Type | Dual Channel DDR5 Memory Technology |
|
| Slots | 2 x DDR5 DIMM Slots |
|
| Supported Memory | Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC) Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
|
| Maximum Memory | 128GB | |
| Others | ||
| Graphics | ||
| Graphics | 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
|
| Others | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| USB (s) | 1 x USB 3.2 Gen1 Type-C (Rear) 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front) |
|
| LAN Port (s) | 1 x RJ-45 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H |
|
| Wireless Communication module | ||
| Supported Storage | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) - Supports NVMe SSD as boot disks - Supports ASRock U.2 Kit |
|
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
|
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone | |

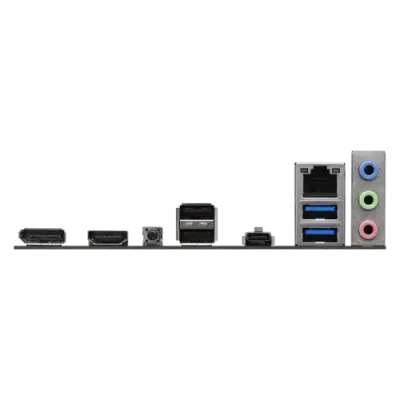

| Internal I/O Ports | - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 2 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x Power LED and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
|
| TPM (Trusted Platform Module ) | ||
| Others | ||
| Others | ||
| Special Features | Software - ASRock Motherboard Utility (A-Tuning) UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
|
| Bundled Software | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 4+1+1 Power Phase, 50A Dr.MOS for VCore EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
|
| Warranty Details | ||
| Warranty Details | 3 Years |
|
| others | ||

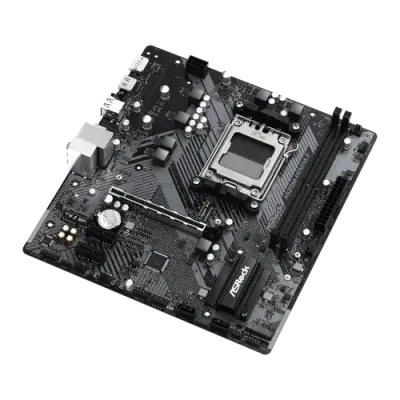

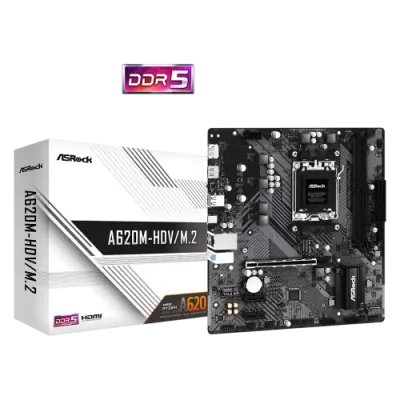

The ASRock A620M-HDV/M.2 AM5 DDR5 Micro ATX Motherboard is designed for high-performance computing and gaming, supporting AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 platform. This motherboard brings next-gen speed with dual DDR5 memory slots, supporting up to 6400+ MHz (OC) and a maximum capacity of 128GB, delivering exceptional multitasking power. Its advanced display outputs, including HDMI 2.1 and DisplayPort 1.4, provide high-resolution visuals and fluid gaming experiences at high refresh rates. Featuring Gigabit LAN, it offers fast and reliable network performance for online gaming, streaming, and cloud computing. The M.2 slot ensures high-speed NVMe SSD storage, allowing for quick boot times and data transfers. With its Micro-ATX form factor, the A620M-HDV/M.2 is ideal for compact PC builds, delivering great performance without compromising on features. Whether you're a gamer, content creator, or power user, this motherboard provides excellent value, stability, and cutting-edge technology.
Get specific details about this product from customers who own it.
| Basic Information | ||
| Supported CPU | Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors |
|
| Chipset | AMD A620 |
|
| Form Factor | Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm 2oz Copper PCB |
|
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
|
| Others | ||
| Expansion Slots | ||
| PCI | CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode Chipset: 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module 15μ Gold Contact in VGA PCIe Slot (PCIE1) |
|
| M.2 Socket | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes* |
|
| Others | ||
| Memory | ||
| Type | Dual Channel DDR5 Memory Technology |
|
| Slots | 2 x DDR5 DIMM Slots |
|
| Supported Memory | Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC) Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
|
| Maximum Memory | 128GB | |
| Others | ||
| Graphics | ||
| Graphics | 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
|
| Others | Integrated AMD RDNA™ graphics (Actual support may vary by CPU) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| USB (s) | 1 x USB 3.2 Gen1 Type-C (Rear) 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front) 6 x USB 2.0 (2 Rear, 4 Front) |
|
| LAN Port (s) | 1 x RJ-45 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H |
|
| Wireless Communication module | ||
| Supported Storage | - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) - Supports NVMe SSD as boot disks - Supports ASRock U.2 Kit |
|
| RAID | Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
|
| Audio | HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Internal I/O Ports | - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 2 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone - 1 x Power LED and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
|
| TPM (Trusted Platform Module ) | ||
| Others | ||
| Others | ||
| Special Features | Software - ASRock Motherboard Utility (A-Tuning) UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash |
|
| Bundled Software | Superb Productivity - Dual Channel DDR5 Rock-Solid Durability - 4+1+1 Power Phase, 50A Dr.MOS for VCore EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer |
|
| Warranty Details | ||
| Warranty Details | 3 Years |
|
| others | ||
The ASRock A620M-HDV/M.2 AM5 DDR5 Micro ATX Motherboard is designed for high-performance computing and gaming, supporting AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 platform. This motherboard brings next-gen speed with dual DDR5 memory slots, supporting up to 6400+ MHz (OC) and a maximum capacity of 128GB, delivering exceptional multitasking power. Its advanced display outputs, including HDMI 2.1 and DisplayPort 1.4, provide high-resolution visuals and fluid gaming experiences at high refresh rates. Featuring Gigabit LAN, it offers fast and reliable network performance for online gaming, streaming, and cloud computing. The M.2 slot ensures high-speed NVMe SSD storage, allowing for quick boot times and data transfers. With its Micro-ATX form factor, the A620M-HDV/M.2 is ideal for compact PC builds, delivering great performance without compromising on features. Whether you're a gamer, content creator, or power user, this motherboard provides excellent value, stability, and cutting-edge technology.
